Searching for Machine Capacity: 20mm

SB-20RII

The SB-20RII delivers enhanced performance, versatility, and ergonomics with added tool stations, higher spindle speeds, advanced controls, and improved accuracy. With 7 axes, the main spindle supports 6 turning tools, 2 fixed spindles for cross-working, and 3 modular power-driven stations for various attachments. The sub spindle offers 4 standard stations, expanding to 6. The SB-20RII can operate in both guide bush and non-guide bush modes for greater flexibility.

SR-20JII Type A/B

The new upgrade to the SR-20JII model provides increased flexibility, more tooling configurations, and high rigidity with high accuracy.

• Large tooling capacity for main operations
• 8-Station back-working unit with Y-axis and increased power.
• Slanted dovetail construction on tool post provides high rigidity
• Switchable G.B. and N.G.B. change-over

SV-20R

SV-20R delivers a wide range of machining operations for producing intricate and complicated parts for medical and aerospace industries.

• Multi-axis machine with multi-series control for high machine productivity
• Flexible tooling layouts for endless variations of complex machining
• “Super position mode” enables multiple tools to work simultaneously
• 8-spindle backworking unit with Y-axis control accommodates a variety of tools for overlapping operations
• Maximum machining diameter 20 mm
• Guide bush and Non-guide bush switching function
• Star Motion Control reduces idle time

ECAS-20

Machine complete high-precision profile parts faster, easier, and more reliable than ever

• Maximum machining diameter 20mm
• 10-axis design features independent front and back working with 2-tool turning simultaneous operations
• Revolutionary dual control facilitates machining of complete profile parts with simpler operation at a higher speed by using the exclusive Star Motion Control System
• Star’s exclusive Motion Control System ensures optimal accuracy and cycle times

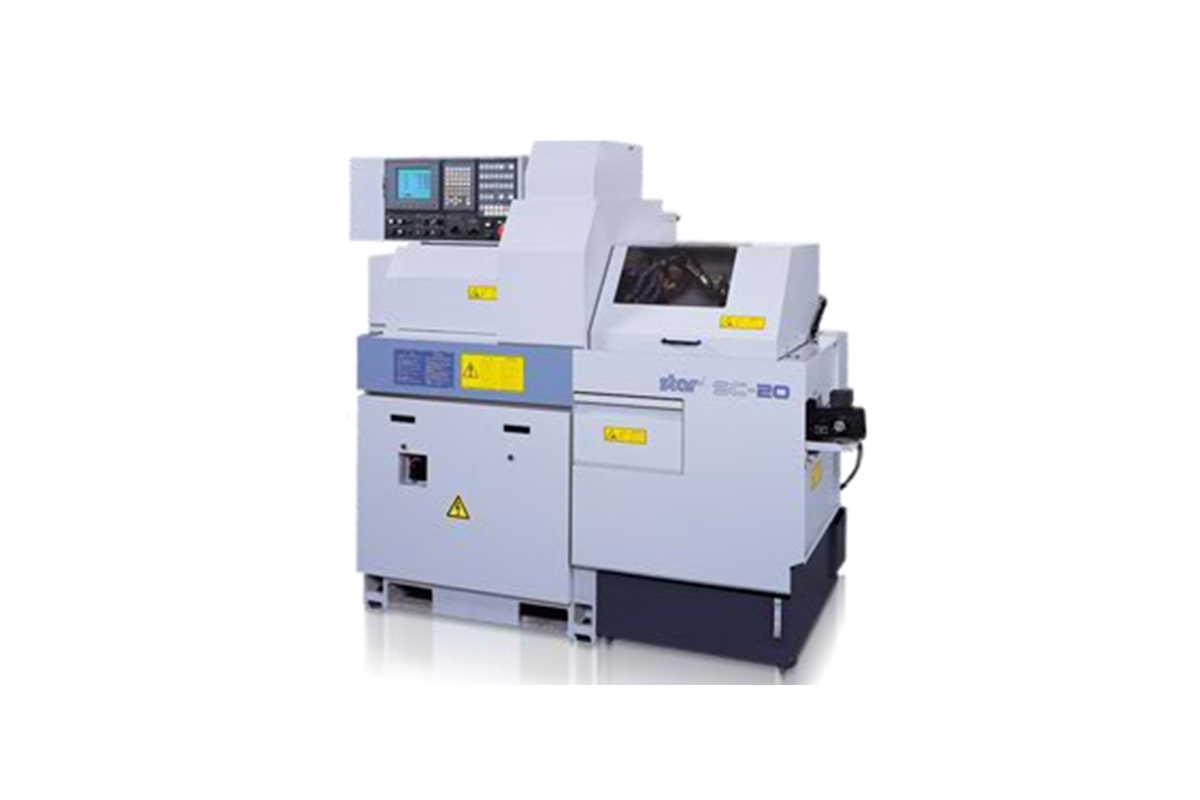

SC-20

Non-guide-bush system presents the most cost-effective machine with ultimate performance reliability

• Durably designed with a six-gang tool post and 4-spindle sleeve
• Superior complex machining capability, precision machining capability, and performance stability
• Exclusive rigid “slanted dovetail slideway structure” improves dimensional accuracy and tool life
• Material cost reduction and energy conservation

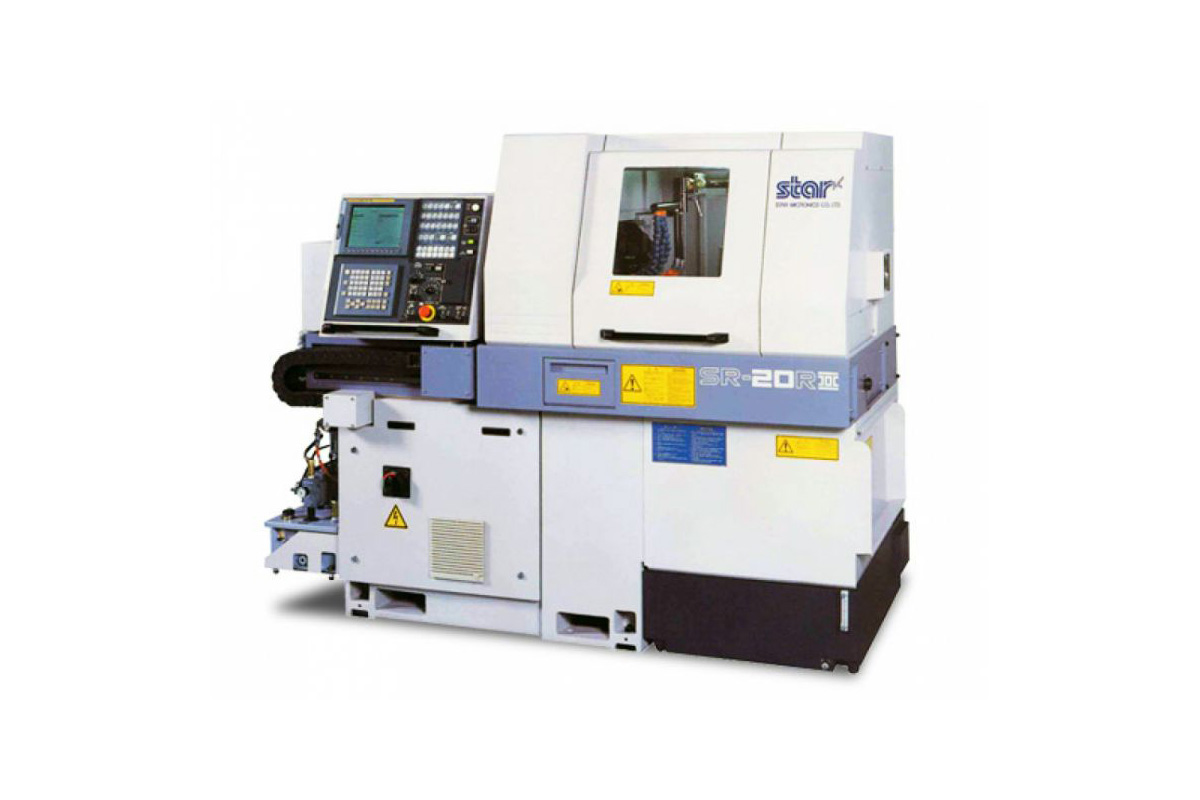

SR-20R II

Features fully independent front/back working capability; built to produce complex parts for medical and other industries in one operation

• Enhanced power & tooling flexibility
• Fast tool selection for higher productivity
• Maximum 4 counter-face drill sleeves and 10 cross and front power-driven tools
• Large-capacity chip bucket and coolant tank for longer continuous operation
• Outstanding environmental safety performance

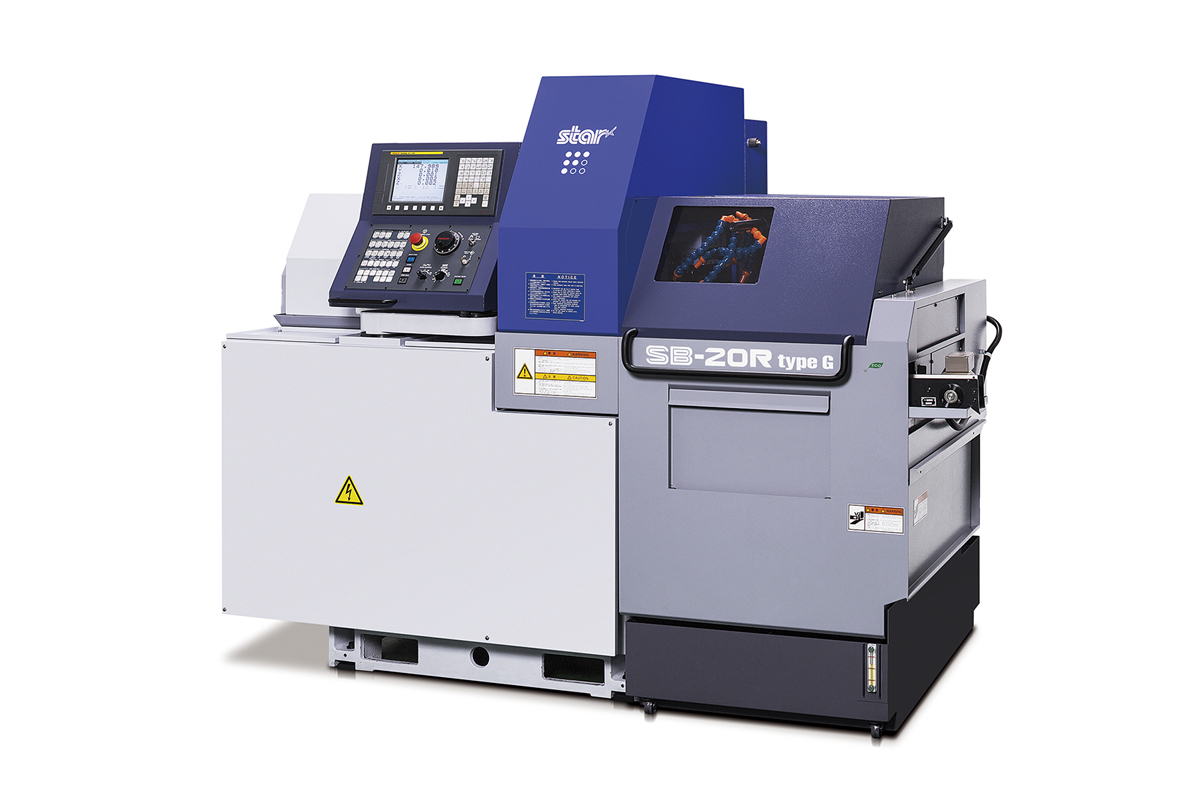

SB-20R Type G

The SB-20R Type G offers a wide range of machining operations that is made possible with the unique Guide Bush/Non-Guide Bush switching function.

• Maximum machining diameter 20mm
• Flexible tooling layouts allow for endless variations of complex machining
• 4 types of tool posts available from which to select the tooling layout most suited to the required machining applications
• Maximum tooling variations yield performance that meets manufacturing needs across multiple industries
• Flexible tooling layouts include the ability to combine the selection of tool post and cartridge unit

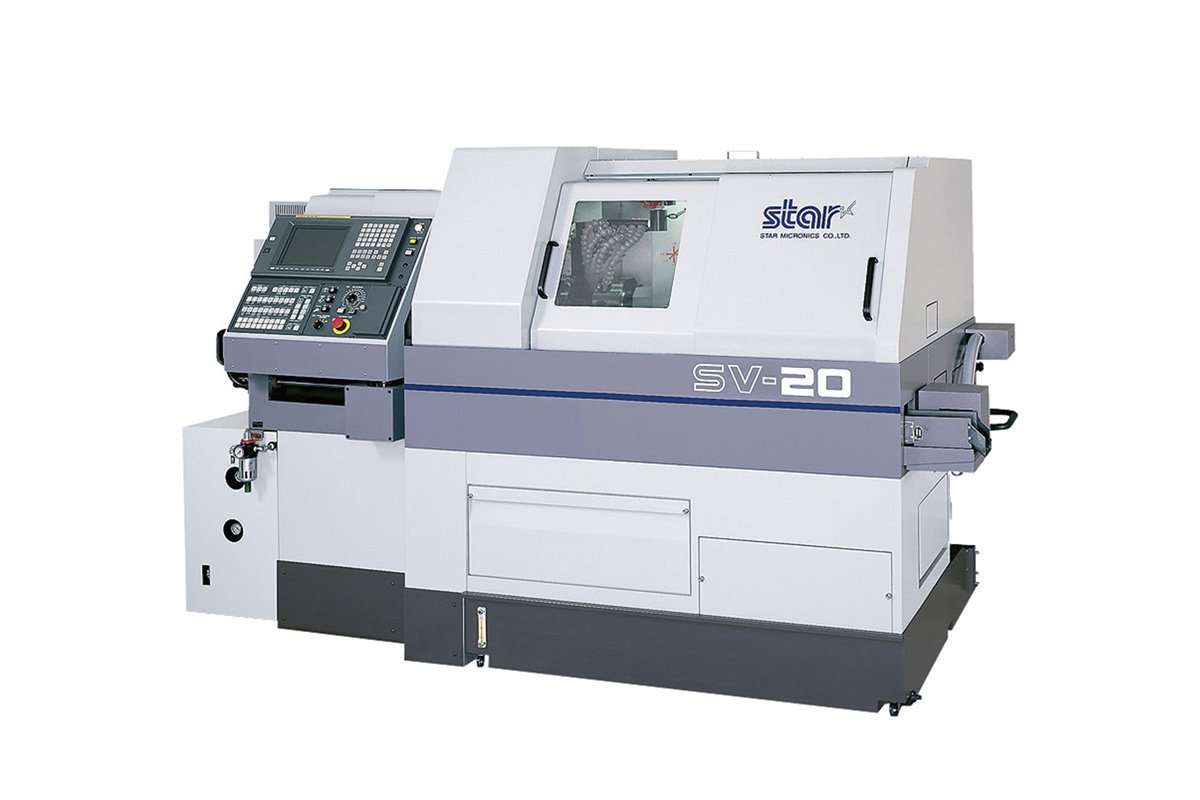

SV-20

For high-speed, high-precision complex machining of small parts and difficult cutting materials

• Faster machining, versatile tooling, precise, powerful machining
• 2-axis controlled gang tool post can be fitted with several turning tools and power-driven attachments
• Y, B, and E axes of control enhance your capability to produce complex parts in difficult steels
• All models feature 9-axis controller
• Machines parts up to 20 mm

ST-20

Machining with the highest specifications and functions that deliver high productivity and profitability

• Simultaneous machining capability such as turning and milling by opposing twin turret tool posts drastically reduces machining time
• Main and sub spindles are both capable of the same level of machining which enables complex parts to be machined with incredibly short cycle times and to a high standard of quality
• Equipped with 3 turrets for ultra-high speed flexible machining
• Elaborate array of turret posts allow for a wide range of tooling configurations for seamless multi-processing

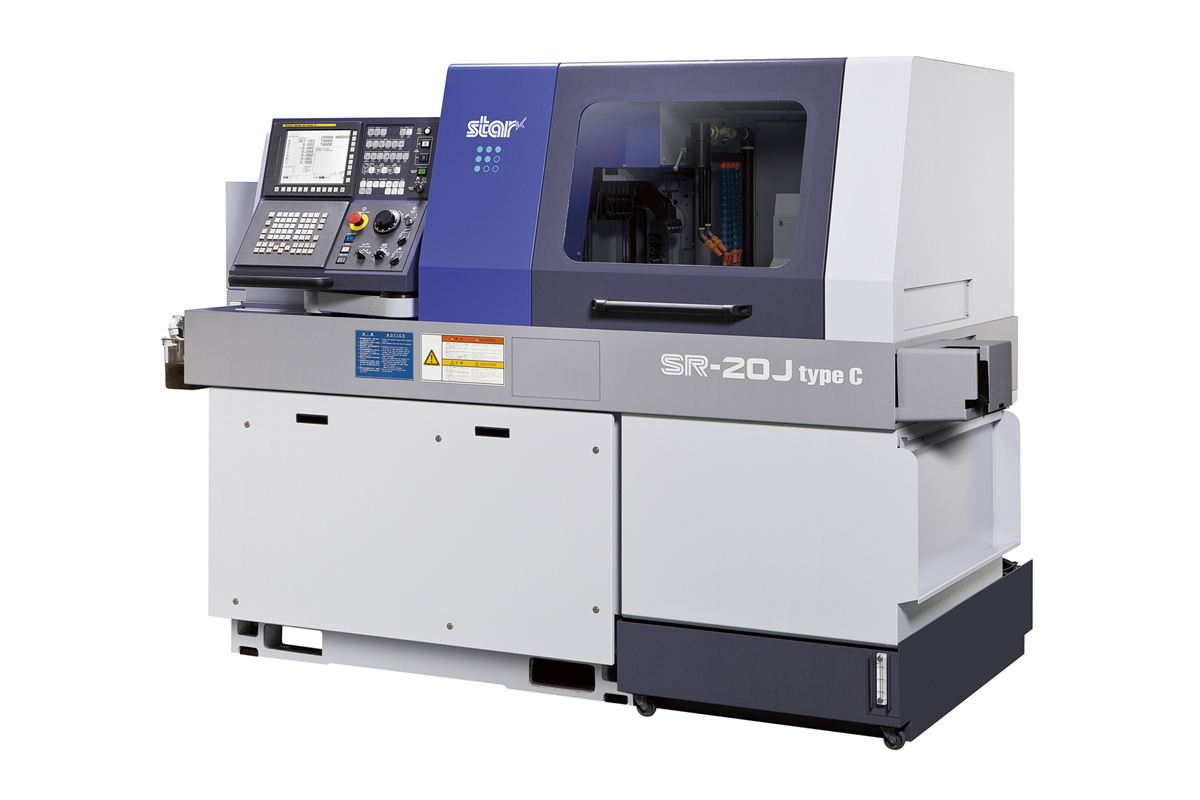

SR-20J

Optimum cost performance whether you choose the Swiss Type C or Non-Guide Bush Type N machine

• Innovative machine configuration provides high productivity by significantly reducing non-cutting time
• Unique “slanted dovetail slideway structure” tool post design helps maintain dimensional accuracy while also extending cutting tool life
• Enhanced tooling capitalizes on basic and advanced machining applications
• Optional 3-spindle back drill unit and back working cross drill unit increases the flexibility of operations carried out in the sub spindle

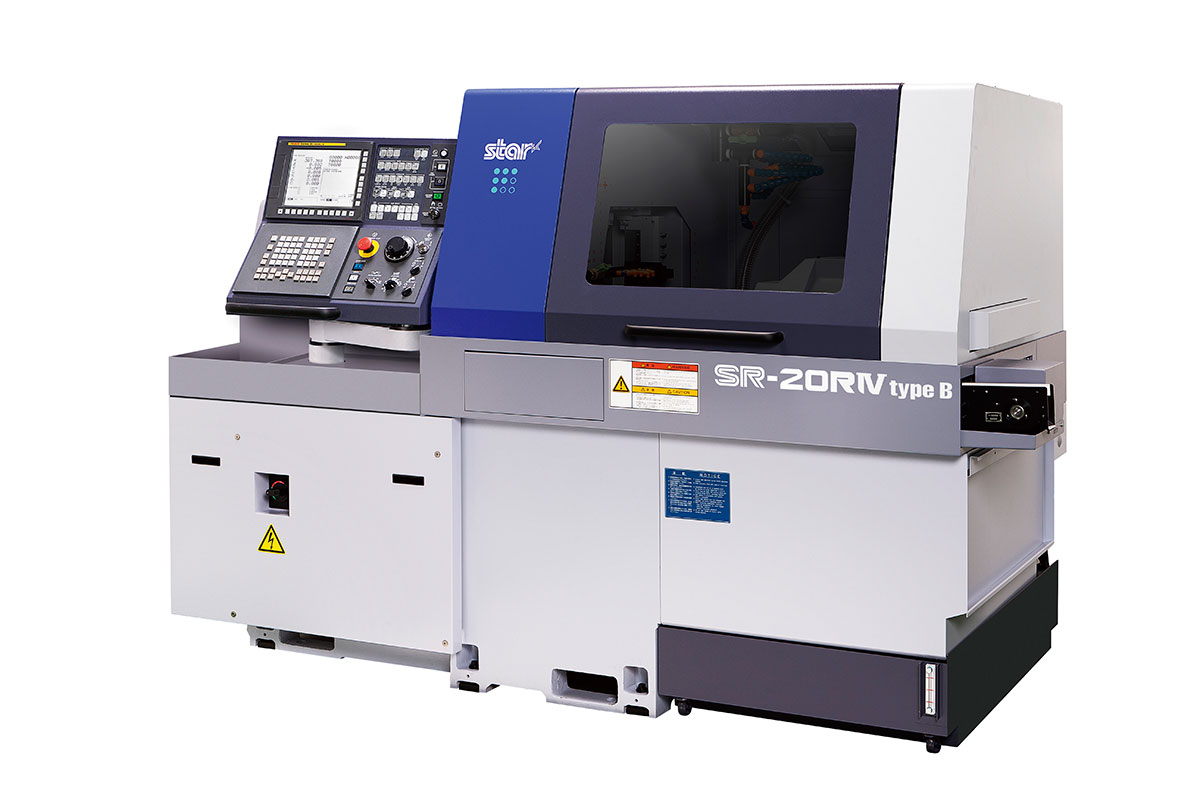

SR-20R IV Type A/B

Complex machining functions adaptable to multiple industries where precision and accuracy are essential

• 27-position tool station accommodates up to 41 tools
• Full B-axis for cross drilling/milling with a variety of tooling options
• Tool post designed especially for backworking, with Y-axis control function as standard
• Rigid construction provides stability for very close tolerance work and extended tool life
• Built-in motor and built-in sensor for improved indexing accuracy
• Equipped with Star Motion Control System for higher accuracy and easier operability

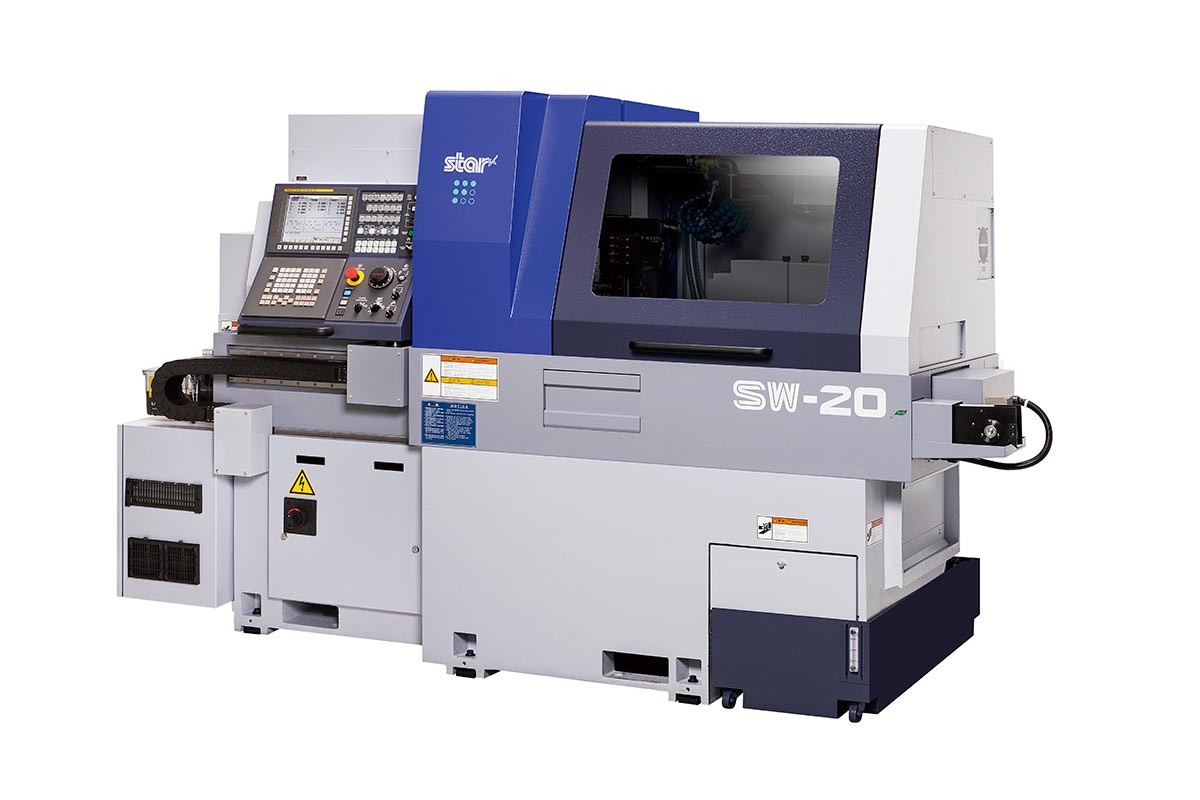

SW-20

Advanced software improves both production output and profitability in machining complicated components

• Next-generation software reduces idle times, both mechanically and electrically
• Exclusive tool post design with Y-axis control function enables many complex functions to be machined independently
• Equipped with Star Motion Control System ensures an uninterrupted tool path
• Manual handle retracing, program check, code help, alarm help, and more provide greater user control
