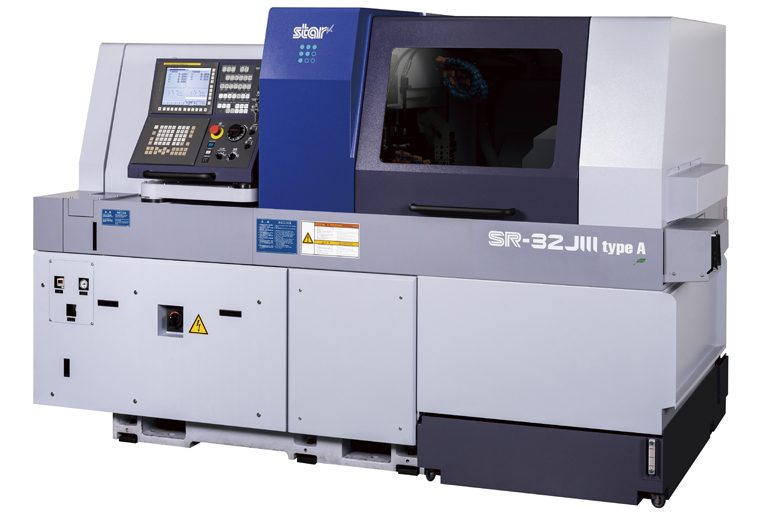

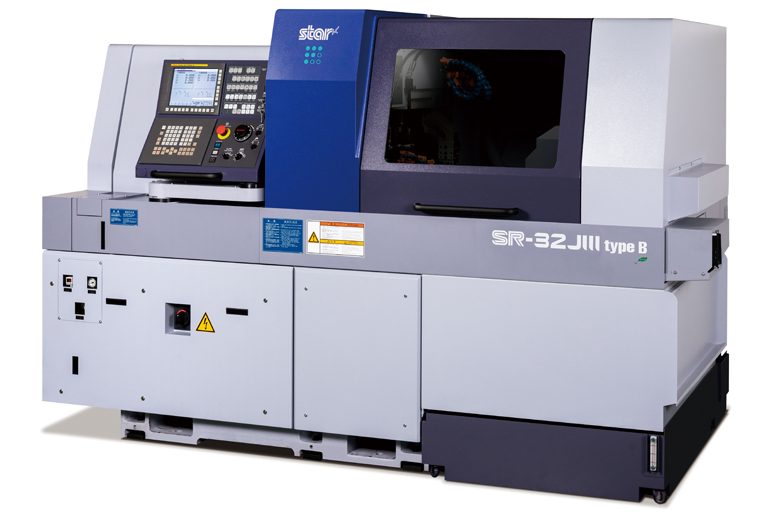

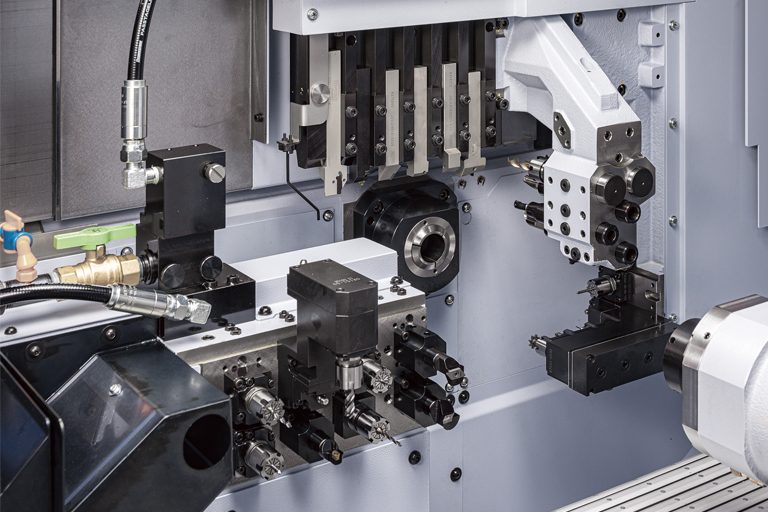

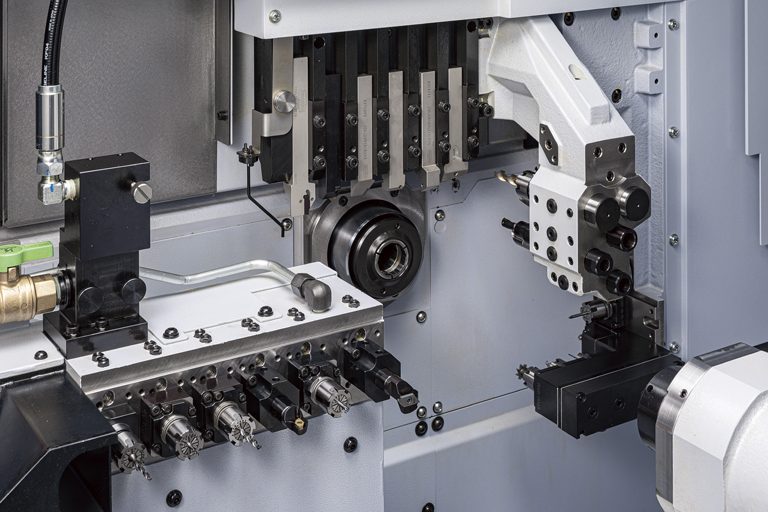

SR-32JIII Type A/B CNC Swiss-type Automatic Lathe

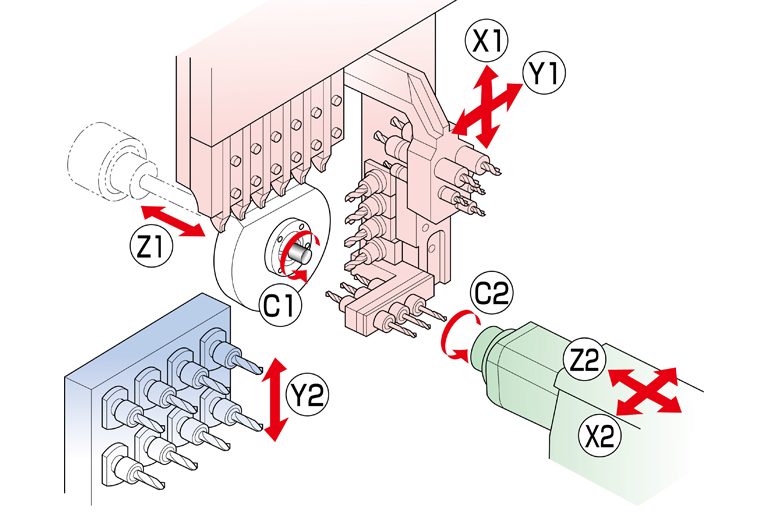

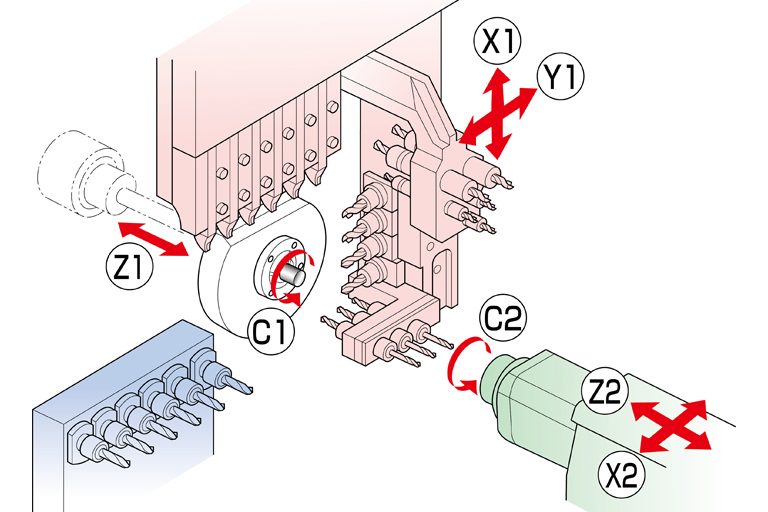

The SR-32JIII Type B modular design with slanted guide way increases rigidity, improves accuracy for stable production. Eight (8) stations back working unit with Y axis provides flexibility in overlapping machining requirements. Rigid machine construction enables continuous machining with superior accuracy over extended periods of time. The SR-32JIII is designed to work with or without guide bushing which is another option to further enhance versatility and flexibility while machining.

Download PDF Request Info

  • Max. Machining Diameter

    ø32mm (1-1/4in) OP: ø34mm(1-11/32in)

  • Max. Headstock Stroke

    STANDARD
    320mm (12-19/32in)

    WITH R.M.G.B UNIT
    286.5mm (11-9/32in)

    WITH N.G.B. UNIT
    Bar diameterx2.5 (Max. 80mm) (Max. 3-5/32in)

  • Tool

    NUMBER OF TOOLS
    6 tools

    TOOL SHANK
    16mm

  • 5-Spindle Sleeve Holder

    NUMBER OF TOOLS
    Front 5 tools
    Rear 5 tools

    MAX. DRILLING CAPABILITY
    ø13mm (33/64in)

    MAX. TAPPING CAPABILITY
    M12 x P1.75

  • Power Driven Attachment

    NUMBER OF TOOLS
    Cross milling 3 tools (ER20) + Cartridge type 2 positions
    Cross milling 4 tools (ER16) + Cartridge type 2 positions
    Cross milling 6 tools (ER16)

    MAX. DRILLING CAPABILITY
    ø10mm (25/64in)

    MAX. TAPPING CAPABILITY
    M8 x P1.25

    SPINDLE SPEED
    Cross milling: Max 6,000min -1
    Cartridge-type tool: Max 8,000min -1

    DRIVE MOTOR
    2.2kW (continuous) / 3.0kW (5min/30%ED)

  • Rapid Feed Rate

    35m/min (X1, X2, Y1, Z1, Z2), 24m/min (Y2) : type B only

  • Main Spindle Indexing Angle

    C-axis control

  • Main Spindle Speed

    Max. 8,000min -1

  • Main Spindle Motor

    7.5kW (continuous) / 11.0kW (10min./25%ED)

  • Coolant Tank Capacity

    275ℓ

  • Dimensions (W x D x H)

    2,690 x 1,345 x 1,780mm

  • Weight

    4,100kg

  • Power Consumption

    8.1kVA

  • Maximum Chucking Diameter

    ø32mm (1-1/4in) OP: ø34mm(1-11/32in)

  • Max. Length for Front Ejection

    125mm (4-59/64in)

  • Max. Part Projection Length

    45mm (1-49/64in)

  • UNIT ESPECIALLY FOR BACKWORKING*

    NUMBER OF TOOLS
    Type A - 6 tools
    Type B - 8 tools

    MAX. DRILLING CAPABILITY
    Stationary tool - ø13mm (33/64in)
    Power Driven tool - ø8mm (5/16in)

    MAX. TAPPING CAPABILITY
    Stationary tool - M10xP1.5
    Power Driven tool - M6xP1.0

    *Note: In order to use the rotary tool, the driven system for power-driven tool type B is needed (Type A).

  • Power-driven Attachment Spindle Speed

    Max. 6,000min -1

  • Power-driven Attachment Drive Motor

    1.0kW (continuous) / 1.2kW (5min./30%ED)

  • Sub-Spindle Indexing Angle

    C-axis control

  • Sub-Spindle Speed

    Max. 8,000min-1

  • Sub-Spindle Motor

    3.7kW (continuous) / 5.5kW (10min/40%ED)

  1. CNC Unit FANUC 32i-B
  2. Operation panel 10.4 inch color LCD display
  3. Manual pulse generator
  4. Pneumatic Unit
  5. Hydraulic Unit
  6. Coolant Level Detector
  7. Automatic centralized lubrication unit
  8. Door interlock system
  9. C's contouring control (main/sub)
  10. Spindle clamp unit (main/sub)
  11. Spindle cooling unit
  12. Revolving guide bush unit
  13. Drive unit for revolving guide bush
  14. Air purge for revolving guide bush
  15. Main/Sub collet
  16. 6-station tool holder - 16mm
  17. Cross drilling unit (Cartridge type - 5-spindle/6-spindle, special tool for cross drilling unit - 6-spindle)
  18. 5-spindle sleeve holder
  19. Broken cutoff tool detector
  20. Backworking attachment
  21. Back 6-spindle unit (Type A)
  22. 8-Spindle backworking unit with Y-axis control function (Type B)
  23. Drive unit for power-driven - 8-spindle backworking unit (Type B)
  24. Sub spindle air purge unit
  25. Parts conveyor
  26. Work light
  27. Leakage breaker
  1. Coolant flow detector
  2. Water removal unit
  3. Oil mist filter
  4. Beacon
  5. Main spindle inner tube
  6. Rotary magic guide bush unit
  7. Non-guide bush type
  8. Feed arrow steady rest
  9. Drive unit for power-driven attachment B (Type A only)
  10. Parts ejector (spring type)
  11. Parts ejector (air cylinder type)
  12. Parts ejector with guide tube
  13. Parts stopper unit
  14. Coolant unit (6.9MPa/2.5MPa/0.7MPa)
  15. Coolant unit signal cable
  16. Coolant unit power cable
  17. Coolant valve
  18. Coolant pipings
  19. Automatic bar feeder interface
  20. LAN/RS232C interface
  21. Transformer
