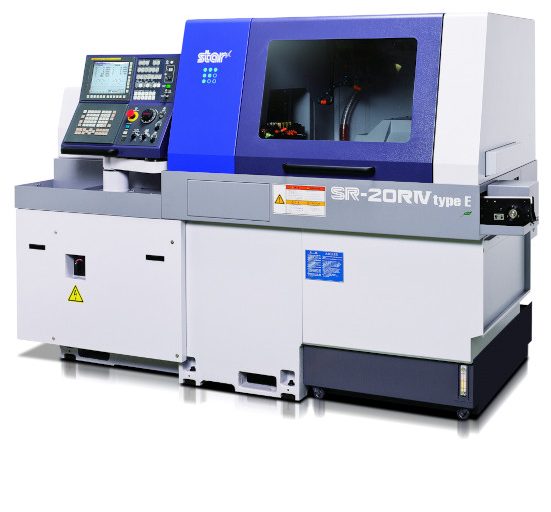

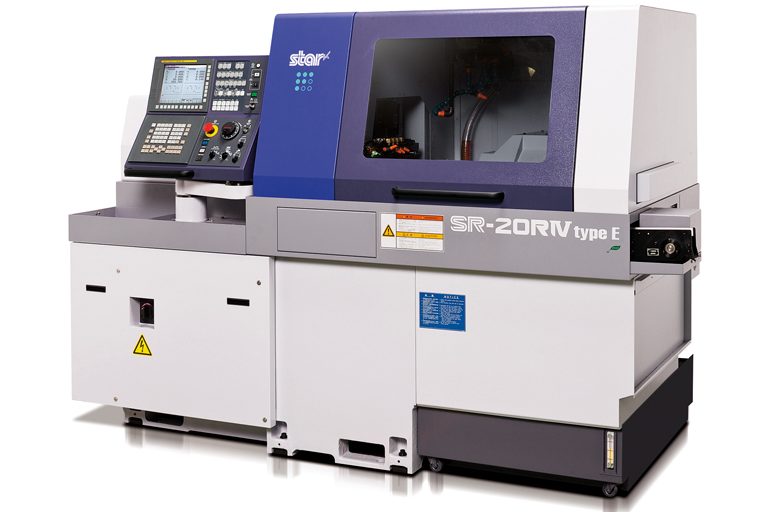

Machine Specifications
Specifications
Control, capacity & movement MM/IN
- Controller
- Fanuc 31i-B

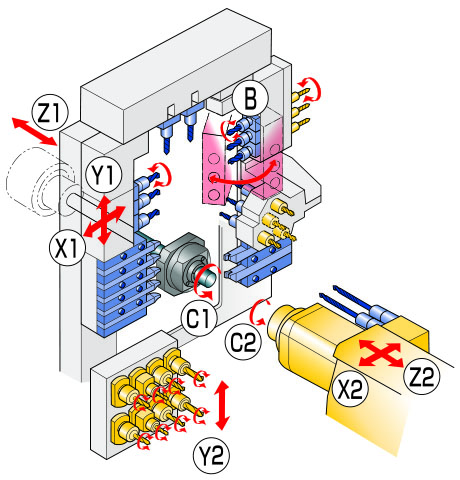

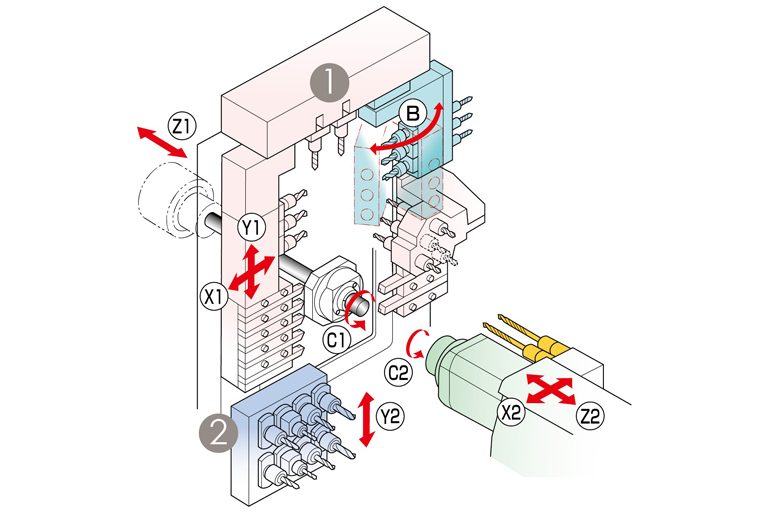

- Axes (Rapid Feed Rate)
- X1, Y1, Z1, X2, Z2 (35 m/min)
Y2 (15 m/min)
B1 (27,000 deg/min)
C1, C2 (198,000 deg/min) - Maximum Capacity
- 20 mm (0.787")
- Stroke
- GB: 205 mm (8.070")
NON-GB: 50 mm (1.970") - Dimensions
- 2334 x 1200 x 1700 mm
(approx. 92" x 48" x 67") - Center Height
- 1060 mm
(41.733") - Weight
- 2600 kg
(5733 lbs) - Coolant Tank Capacity
- 170 L
(45 gal)
Spindle & power-driven tooling RPM/KW
- Main Spindle
- 10,000 RPM
3.7 kW / 2.2 kW (cont.) - Power Driven Tools for Main
- 8,000 RPM
2.2 kW (cont.) - Sub Spindle
- 10,000 RPM
3.7 kW / 2.2 kW (cont.) - Power Driven Tool for Sub
- 8,000 RPM
1.2 kW / 1.0 kW (cont.)

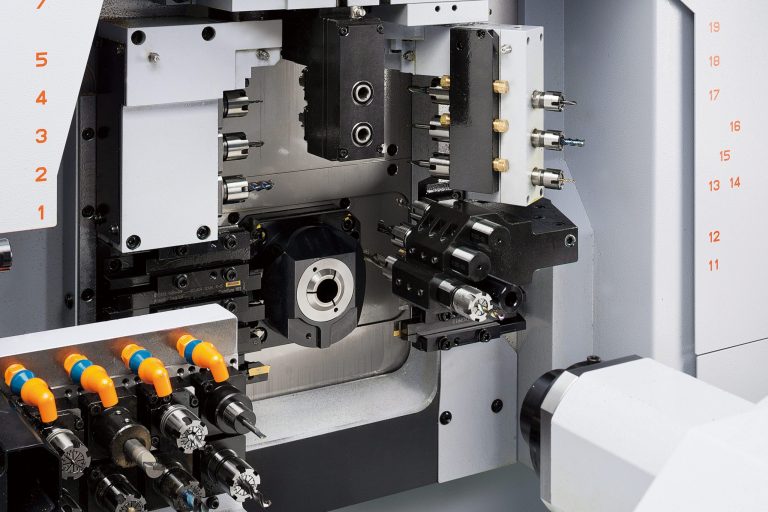

Tool Layout
Standard Tool Layout Included
- Work Holding
- R20 (TF25) | R20 (TD25S)

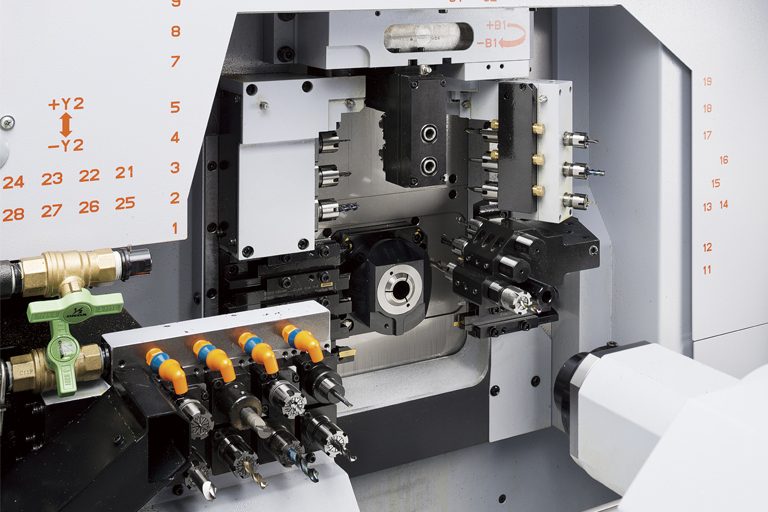

- Tool Layout
- 7-Station Tool Holder 12mm (1/2")
8-Spindle Cross Drill Unit

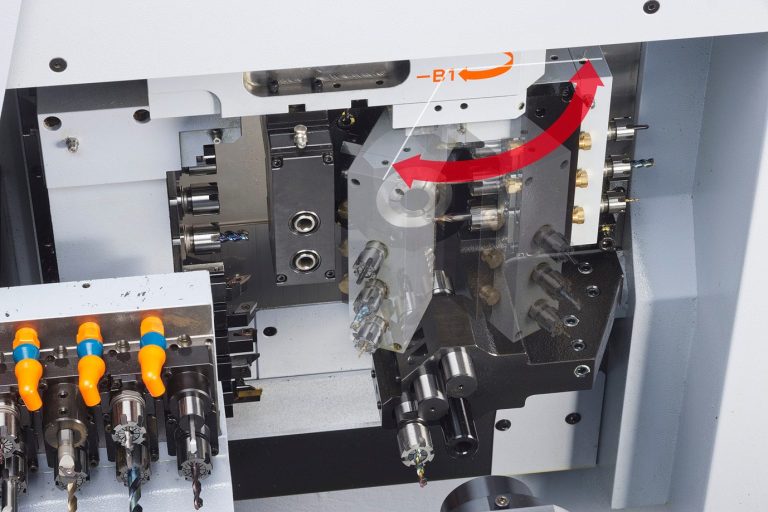

• 3-Spindle Tilting Drill Unit with B-axis ER16/ER11
• 3 x Built-in Milling Unit ER16
• 2 x Cartridge positions available
4-Position Sleeve Holder (22mm*4)
• 4 x Drill Sleeve ER16 [30125]
8-Spindle Unit for Back Working with Drive Unit
• All Cartridge positions available
2-Position Deep Hole Drilling Station
Optional Tool Holders Options
- Options for Main Side
- Drill Sleeves and Boring Bar Sleeves
Drilling/Milling Units
3-Spindle Front Drilling Unit
4x Speed Type Cross Drilling Unit
4x Speed Type Front Drilling Unit
Thread Whirling Unit
Polygon Unit
Slotting Unit
Hobbing Unit - Options for Sub Side
- Drill Sleeves and Boring Bar Sleeves
Drilling/Milling Units
4x Speed Type Drilling Unit
Cross Drilling Unit (max 4)
Slotting Unit
Accessories
Standard Accessories Included
- Guide Bushing / Non-Guide Bushing Conversion
- Automatic Centralized Lubrication Unit with level detector
- Pneumatic Unit
- Spindle Cooling Unit
- Stand Alone Type Coolant Tank with Coolant Level Detector
- Coolant Flow Detector [0T459]
- Door Interlock System [ 0T454]
- Broken Cut-Off Tool Detector
- C-axis Contour Control (for the main/sub spindles)
- Spindle Clamp Unit (for the main/sub spindles)
- Parts Ejector with Spring
- Parts Ejection Detector
- Parts Conveyor [0T412]
- Beacon Interface [0T441]
- RS232C Interface with Cover [72803]
- Automatic Bar Feeder Interface [0T449]
- Automatic Bar Feeder Interface 2 [0T437]
- Chip Conveyor Interface 20 Contacts Version [0T436]
- Coolant Unit Signal Cable 46 Contacts Version [1H434]
- Coolant Unit 0.7MPa (through Sub Spindle) [0T455]
- Coolant Piping for Tilting Head Unit [0T416]
- Coolant Piping for Front Power Driven Tools [0T417]
- Coolant Piping for Back 8 Spindle Unit - x2 [0T452]
- Coolant Piping for Oil Hole Drill [0T479]
- Coolant Piping for Sleeve Holder [0T482]
- Coolant Piping for Front Gang Tool Post [0T484]
- Coolant Piping for Inner Gang Tool Post [0T485]
Optional Accessories Options
- Beacon Light
- Main/Sub/Guide Bush Expansion and Reductions Systems
- Magic Guide Bushing Unit
- JBS Flexible Guide Bushing Unit
- Pneumatic Parts Ejector
- Long Parts Ejector Guide Tube
- Chiller Unit
- High Pressure Pump
- Mist Collector
- Chip Conveyor
- Fire Suppression System
- Bar Feeders
Functions
Standard Functions Included
- Control unit (FANUC Series 31i-B)
- Operation panel (10.4" color LCD display)
- Number of control axes : 9 total (5 on Path1, 4 on Path2)
- Synchronized axis control (Z1/Z2, C1/C2)
- Synchronous rotation/phase control of Main & Sub Spindles
- Cs contour control (Main & Sub Spindle)
- Program storage : 1MB in total
- Number of registerable programs : 1000 in total
- Tool wear offset : 89 on each Path
- Automatic collet adjustment function
- Guide Bush / Non Guide Bush change function
- Spare M code (4 pairs)
- Increment system 1/10
- Tool life management function
- Cylindrical interpolation (G107)
- Polar coordinate interpolation (G112)
- Polygon machining (G251)
- Helical interpolation
- 3D coordinate conversion
Optional Functions Options
- HFT Chip Control Technology
- SCP Chip Control Technology
- Circular Thread Cutting
- Flexible Synchronization Control
