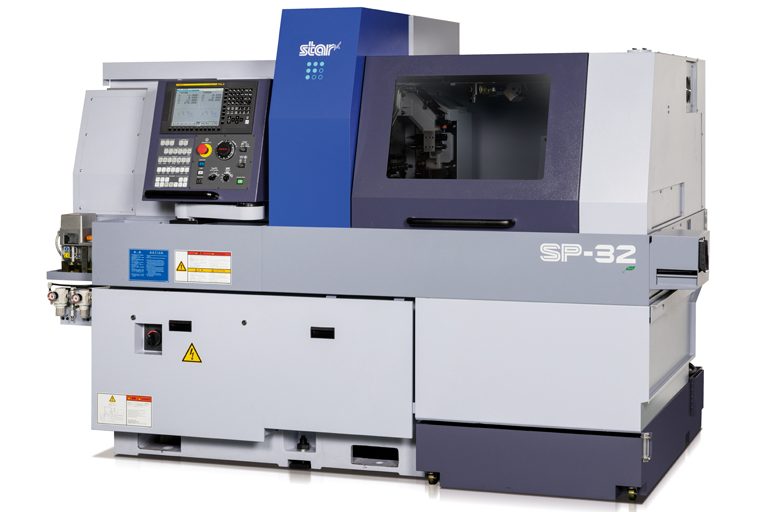

Machine Specifications
Specifications
Control, capacity & movement MM/IN
- Controller
- Fanuc 0i-TF PLUS
- Axes (Rapid Feed Rate)
- X1, Y1, Z1, X2, Z2 (35 m/min)
C1, C2 (198,000 deg/min) - Maximum Capacity
- 32 mm (1.25")
- Stroke
- GB: 310 mm (12.2")
NON-GB: 80 mm (3.150") - Dimensions
- 2570 x 1275 x 1850 mm
(approx. 102" x 51" x 73" ) - Center Height
- 1060 mm
(41.733") - Weight
- 3000 kg
(6614 lbs) - Coolant Tank Capacity
- 230 L
(61 gal)
Spindle & power-driven tooling RPM/KW
- Main Spindle
- 7,000 RPM
7.5 kW / 5.5 kW (cont.) - Power Driven Tools for Main
- 5,000 RPM
2.0 kW (cont.) - Sub Spindle
- 7,000 RPM
3.7 kW / 2.2 kW (cont.) - Power Driven Tool for Sub
- 6,000 RPM
0.75 kW (cont.)

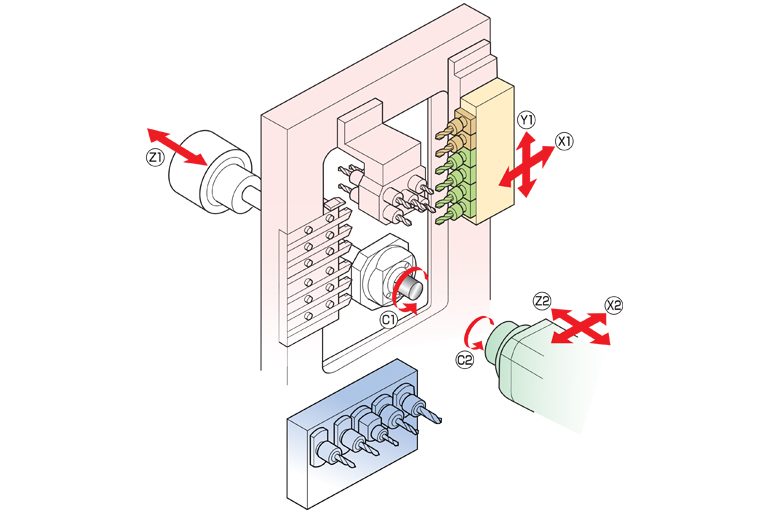

Tool Layout
Standard Tool Layout Included
- Work Holding
- MR32 (TF37) | MR32 (TD32S)
- Tool Layout
- 6-Station Tool Holder 16mm (5/8")
6-Spindle Cross Drill Unit
• 2 x Built-in Milling Unit ER16
• 4 x Cartridge positions available
5-Position Sleeve Holder (32mm*2, 22mm*3)
• 2 x Drill Sleeve ER20 [67121]
• 3 x Drill Sleeve ER16 [30124]
5-Spindle Unit for Back Working w/ Drive Unit
• 5 x Drill Sleeve ER20 [10105]
Optional Tool Holders Options
- Options for Main Side
- 6-Station Tool Holder 16mm (5/8") - Coolant Through
- Options for 2nd B-Axis (type B only)
- Drill Sleeves and Boring Bar Sleeves
Drilling/Milling Units
3-Spindle Front Drilling Unit
4x Speed Type Cross Drilling Unit
4x Speed Type Front Drilling Unit
Thread Whirling Unit (5000 RPM)
Polygon Unit
Slotting Unit - Options for Sub Side
- Drill Sleeves and Boring Bar Sleeves
Drilling/Milling Units
4x Speed Type Drilling Unit
Height Adjustable Slotting Unit
Accessories
Standard Accessories Included
- Door Interlock System [2F454]
- Broken Cut-Off Tool Detector
- C-axis Contour Control (for the main/sub spindles)
- Spindle Clamp Unit (for the main/sub spindles)
- Parts Ejector with Spring [2F478]
- Parts Ejection Detector
- Parts Conveyor
- Electronic Handwheel
- Beacon Interface [2C428]
- LAN/RS232C Interface with Cover [72808]
- Automatic Bar Feeder Interface [1W413]
- Automatic Bar Feeder Interface 2 [2F419]
- Chip Conveyor Interface 20 Contacts Version [1T442]
- Coolant Unit Signal Cable 46 Contacts Version [2B439]
- Coolant Unit 0.7MPa (through Sub Spindle) [67418]
- Coolant Unit Piping 0.7MPa [2F461]
- Coolant Discharge for Back Attachment [2F418]
- Coolant Piping for Tool Holder [2F464]
- Coolant Piping for Tool Holder 2nd Line [2F465]
- Coolant Piping for Power-Driven Tool [2F466]
- Coolant Piping for Back 5-Spindle Unit [2F467]
- Coolant Piping for Sleeve Holder [2F468]
- Coolant Piping for Guide Bush [2F469]
Optional Accessories Options
- Beacon Light
- Main and Sub Spindle Torque Up
- Magic Guide Bushing Unit
- JBS Flexible Guide Bushing Unit
- Pneumatic Parts Ejector
- Long Parts Ejector Guide Tube
- Chiller Unit
- High Pressure Pump
- Mist Collector
- Chip Conveyor
- Fire Suppression System
- Bar Feeders
Functions
Standard Functions Included
- Control unit (FANUC Series 0i-TF Plus)
- Operation panel (10.4" color LCD display)
- Number of control axes : 7 total (4 on Path1, 3 on Path2)
- Synchronized axis control (Z1/Z2, C1/C2)
- Synchronous rotation/phase control of Main & Sub Spindles
- Cs contour control (Main & Sub Spindle)
- Program storage : 8MB in total
- Number of registerable programs : 1000 in total
- Tool wear offset : 64 on each Path
- Guide Bush / Non Guide Bush change function
- Spare M code (4 pairs)
- Increment system 1/10
- Tool life management function
- Cylindrical interpolation (G107)
- Polar coordinate interpolation (G112)
- Polygon machining (G251)
Optional Functions Options
- HFT Chip Control Technology
- SCP Chip Control Technology
- Circular Thread Cutting
- Helical interpolation
