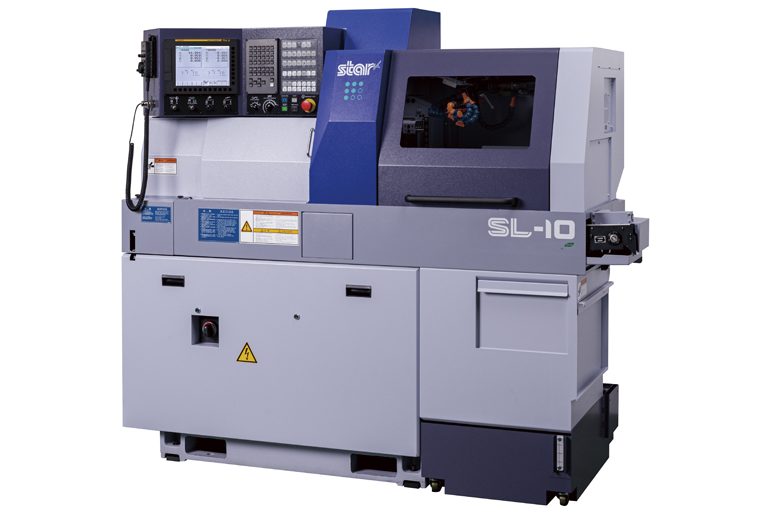

SL-10 CNC Swiss-type Automatic Lathe

The SL-10 is a state-of-the-art design developed to suit small diameter machining requirements offering efficient machining capabilities within a compact footprint.

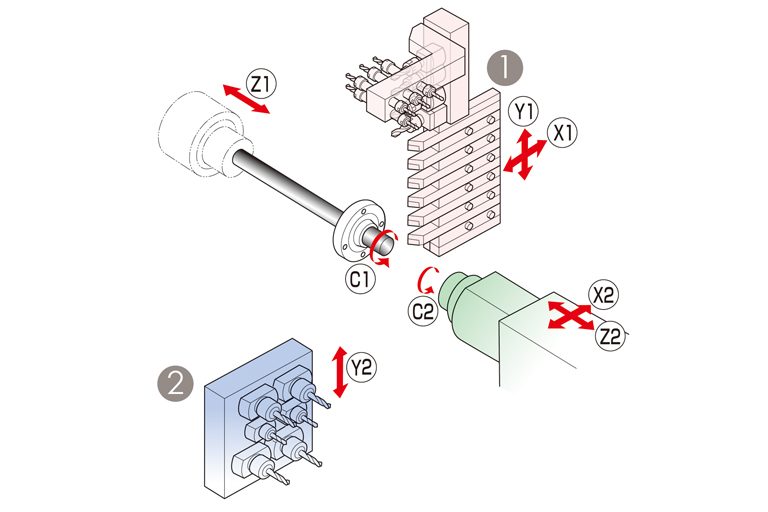

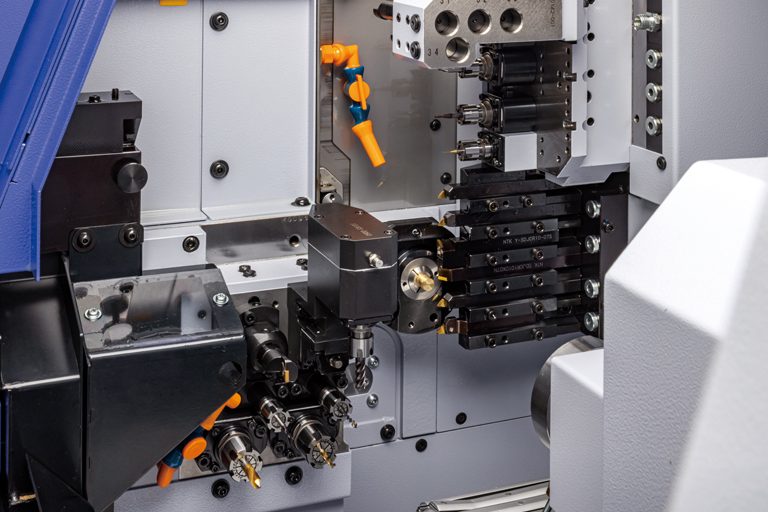

This condensed advanced technology meets current needs through the new design developments.  The flexibility of a 5-spindle cartridge-type cross drilling unit combined with the 6-spindle back working unit with Y-axis control offers a variety of multi-processing functions.  Simultaneously, the dynamic main spindle and the faster power-driven tools are well suited for machining smaller diameter components.

Download PDF Request Info

  • Max. machining diameter

    10mm (25/64in)

  • Max. headstock stroke

    STATIONARY G.B. TYPE
    135mm(5-5/16in)

    R.G.B TYPE
    105mm (4-9/64in)

    R.M.G.B. TYPE
    75mm(2-61/64in)

  • Tool

    NUMBER OF TOOLS
    6 tools

    TOOL SHANK
    8mm/10mm

  • Sleeve holder

    4 SPINDLE
    16mm(5/8in)x4 tools

    6 SPINDLE
    22mm(55/64in)x2 tools

    MAX. DRILLING CAPABILITY
    6mm(15/64in)

    MAX. TAPPING CAPABILITY
    M5xP0.8

  • Power driven attachment

    NUMBER OF TOOLS
    Cross milling 1 tools(ER11) + Cartridge type 4 positions

    MAX. DRILLING CAPABILITY
    5mm(3/16in)

    MAX. TAPPING CAPABILITY
    M4xP0.7

    SPINDLE SPEED
    Max. 12,000min

    DRIVE MOTOR
    1.0kW(continuous)/1.2kW(5min./30%ED)

  • Rapid feed rate

    35m/min (X1,X2,Y1,Z1,Z2), 15m/min (Y2)

  • Main spindle indexing angle

    C-axis control

  • Main spindle speed

    STATIONARY G.B. TYPE
    Max. 18,000min

    R.G.B TYPE
    Max. 15,000min

  • Main spindle motor

    3.7kW(continuous) /5.5kW(10min./25%ED)

  • Coolant tank capacity

    109

  • Dimensions (WxDxH)

    1,865x795x1,815mm

  • Weight

    1,600kg

  • Power consumption

    3.8kVA

  • Max. chucking diameter

    10mm(25/64in)

  • Max. length for front ejection

    70mm(2-3/4in)

  • Max. parts projection length

    20mm(25/32in)

  • Back 6-spindle unit

    NUMBER OF TOOLS
    6 tools

    MAX DRILLING CAPABILITY
    STATIONARY TOOL
    6mm(15/64in)
    POWER DRIVEN TOOL
    5mm(3/16in)

    MAX. TAPPING CAPABILITY
    M5xP0.8
    STATIONARY TOOL
    M4xP0.7

    POWER-DRIVEN ATT. SPINDLE SPEED
    Max. 12,000min

    POWER-DRIVEN ATT. DRIVE MOTOR
    1.0kW(continuous) / 1.2kW(5min./30%ED)

  • Sub spindle indexing angle

    C-axis control

  • Sub spindle speed

    Max.12,000min

  • Sub spindle motor

    0.55kW(continuous) / 1.1kW(15min./40%ED)

  1. CNC unit FANUC 32i-B
  2. Operation panel 10.4-inch color LCD display
  3. Pneumatic unit
  4. Coolant level detector
  5. Automatic centralized lubrication unit
  6. Door interlock system
  7. Cs contouring control (Main/Sub)
  8. Spindle clamp unit (Main/Sub)
  9. Revolving guide bush unit
  10. Drive unit for revolving guide bush
  11. Air purge for revolving guide bush
  12. Main/Sub collet
  13. 6-station tool holder (8mm or 10mm)
  14. 4-spindle sleeve holder
  15. 5-spindle cross drilling unit
  16. Broken cutoff tool detector
  17. Backworking attachment
  18. Back 6-spindle unit
  19. Drive unit for power driven (6-spindle backworking unit)
  20. Sub spindle air purge unit
  21. Sub spindle air blow unit
  22. Parts ejection detector
  23. Work light
  24. Leakage breaker
  1. Manual pulse generator
  2. Coolant flow detector
  3. Check valve
  4. Parts conveyor
  5. Parts receptacle in Machine
  6. Oil pan cover
  7. Water separator
  8. Oil mist filter
  9. Beacon
  10. Main spindle inner tube
  11. Rotary magic guide bush unit
  12. Parts ejector (Spring type)
  13. Parts ejector (Air cylinder type)
  14. Parts ejector with guide tube
  15. Product separator system, A-type
  16. Coolant unit (2.5MPa/0.7MPa)
  17. Coolant unit signal cable
  18. Coolant unit power cable
  19. Coolant valve
  20. Coolant pipings
  21. Coolant pump with defoaming function
  22. 400 W coolant pump
  23. Automatic bar feeder interface
  24. LAN/RS232C interface
  25. Chip conveyor interface
  26. Transformer
  27. Transformer CE marking version
  28. CE/UKCA marking
