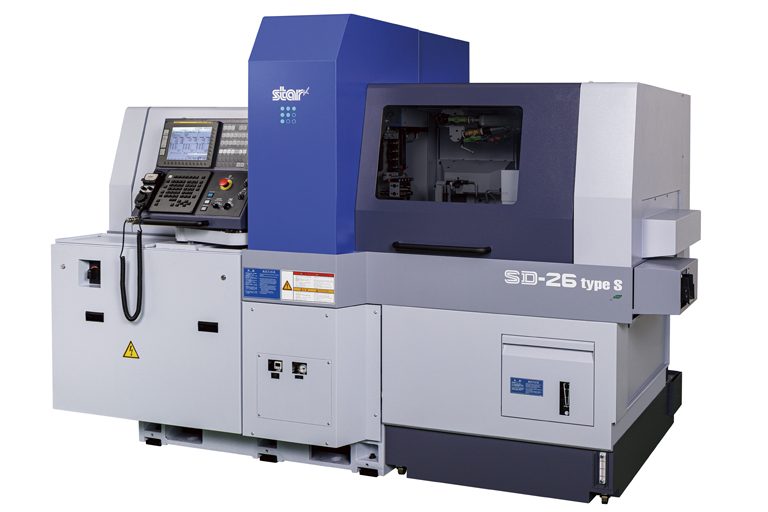

SD-26 Type S CNC Swiss-type Automatic Lathe

The new SD-26 Swiss-type automatic lathe was developed specifically to meet the complex, small parts machining needs of up to 1” (26mm) diameter parts. Meeting the diverse manufacturing needs across multiple industries.

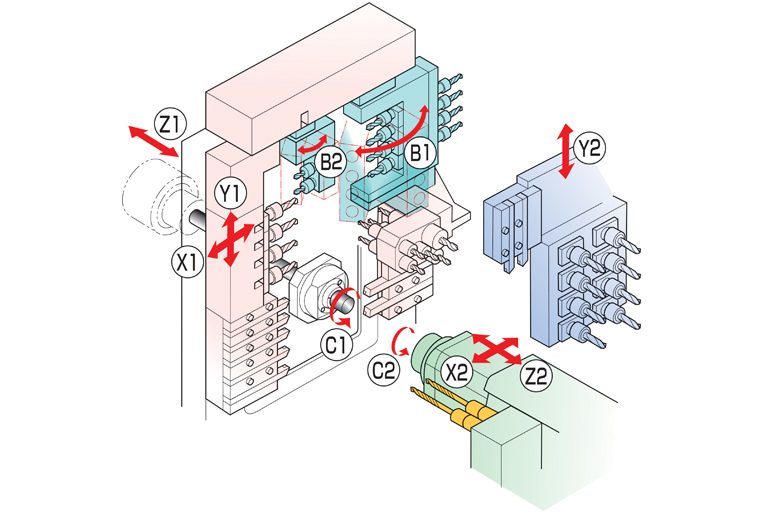

  • Double B-axis programmable units: B1 axis – 4-spindle milling unit with 135° of travel capable of programming simultaneous 5-axis control; B2 axis – provides identical capability for various tooling units including the industry’s first twin-thread whirling unit incorporating a brake to maintain rigidity while machining.

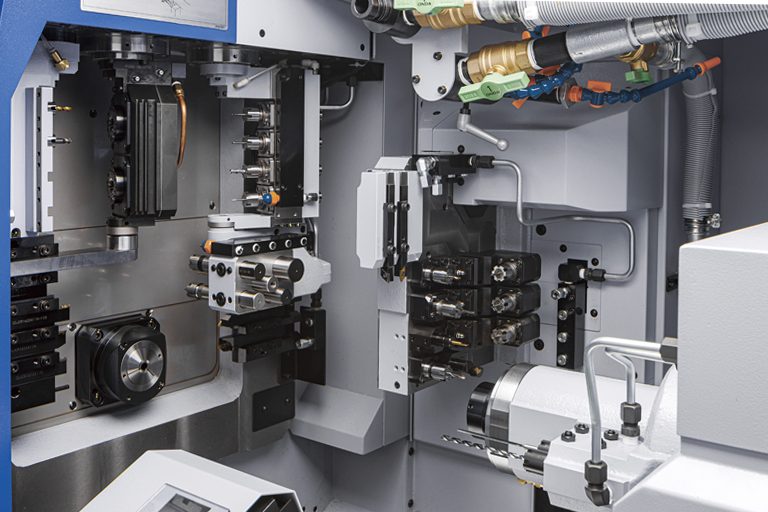

  • Reconfigured machine structure for improved access to the guide bush and tool post
  • A function for batch input/output of NC programs together with related information such as offset data
  • Various help functions including a command help function that allows you to check the various commands on the NC screen

Download PDF Request Info

  • Max. Machining Diameter

    φ26mm (1-1/64 inch)

  • Max. Headstock Stroke

    STANDARD
    260mm(10-15/64 inch)

    R.M.G.B. UNIT
    223.5mm(8-51/64 inch)

    N.G.B. TYPE
    Bar diameter ×2.5 (Max.65mm(2-35/64inch)

  • Tool

    5 tools on the front + 2 tools on the rear (□16mm)

  • 5-Spindle Sleeve Holder

    NUMBER OF TOOLS
    Front 5 tools
    Rear 5 tools

    MAX. DRILLING CAPABILITY
    φ13mm(33/64 inch)

    MAX. TAPPING CAPABILITY
    M12 × P1.75

  • 2-Spindle Sleeve Holder

    Number of tools
    2 tools

    MAX. DRILLING CAPABILITY
    φ10mm(25/64 inch) x Max.100mm(3-15/16 inch) deep

  • Power Driven Attachment

    NUMBER OF TOOLS
    Tilting head unit
    - Front 4 tools / Rear 4 tools
    - B-axis control

    Front
    - Cartridge type 4 pos.

    Upper
    - Cartridge type 1 pos.
    - B-axis control

    MAX. DRILLING CAPABILITY
    Tilting head unit
    - φ8mm(5/16 inch)

    Front / Upper
    - φ10mm(25/64 inch)

    MAX. TAPPING CAPABILITY
    Tilting head unit
    - M8 × P1.25

    Front / Upper
    - M8 × P1.25

    SPINDLE SPEED
    Max.8000min-1

    DRIVE MOTOR
    2.2kW (CONT) / 3.0kW (5min / 30％ED)

  • Rapid Feed Rate

    36m/min (X1,Y1,Z1,X2,Y2,Z2)

  • Main Spindle Indexing Angle

    C-axis control

  • Main Spindle Speed

    Max.10000min-1

  • Main Spindle Motor

    5.5kW (CONT.) / 7.5kW (10min / 25％ED)

  • Coolant Tank Capability

    228ℓ

  • Dimensions (W × D × H)

    2550 ×1300 × 2000mm

  • Weight

    3600kg

  • Power Consumption

    11.98kVA

  • Max. Chucking Diameter

    φ26mm(1-1/64 inch)

  • Max. Length for Front Ejection

    160mm(6-19/64 inch)

  • Max. Parts Projection Length

    40mm(1-9/16 inch)

  • Back 8-Spindle Unit

    NUMBER OF TOOLS
    8 tools

    MAX. DRILLING CAPABILITY
    Stationary tool
    - φ13mm(33/64 inch)

    Power driven tool
    - φ8mm(5/16 inch)

    MAX. TAPPING CAPABILITY
    Stationary tool
    - M12 × P1.75

    Power driven tool
    - M6 × P1.0

  • Power Driven Att. Spindle Speed

    Max.6000min-1

  • Power Driven Att. Spindle Motor

    1.0kW (CONT.)/ 1.2kW (5min / 30％ED)

  • Sub Spindle Indexing Angle

    C-axis control

  • Sub Spindle Speed

    Max.10000min-1

  • Sub Spindle Motor

    3.7kW (CONT.) / 5.5kW (10min / 40％ED)

  1. CNC unit FANUC 31i －B5 Plus
  2. 10.4-inch color LCD display
  3. Pneumatic unit
  4. Coolant level detector
  5. Automatic centralized lubrication unit
  6. Door Interlock unit with Locking System
  7. Cs contour control （Main/Sub ）
  8. Spindle clamp unit （Main/Sub ）
  9. Cooling unit (Main spindle/ Drive unit for gang tool post)
  10. Revolving guide bush unit
  11. Drive unit for revolving guide bush
  12. Air purge unit for revolving guide bush
  13. Main/Sub collet sleeve
  14. Gang-type 5 station tool holder □16 mm
  15. 4 Spindle cross drilling unit cartridge
  16. 4 Spindle opposing unit with B axis control function
  17. Second B-axis unit clamp unit
  18. 5 spindle sleeve holder
  19. 2 spindle sleeve holder
  20. Broken cut-off tool detector
  21. Back attachment
  22. 8 spindle back working unit with Y axis control function
  23. Drive unit for 8 spindle back working unit
  24. Parts separator
  25. Parts conveyor
  26. Sub spindle air purge unit
  27. Coolant pump 400W ver. (Main/Sub ）
  28. Work light
  29. Earth leakage breaker
  1. Gang-type tool holder Coolant thru （5 station/2 station ）
  2. Non-Guide Bush Version
  3. Revolving magic guide bush unit
  4. Coolant flow detector
  5. Coolant flow detector interface
  6. Coolant pump with de-aeration function
  7. Coolant chiller
  8. Water separator
  9. Beacon
  10. Beacon interface
  11. Parts ejector with Spring
  12. Parts ejection detector
  13. Parts ejector with air cylinder
  14. Parts separator unit long parts ver.
  15. Parts ejector with guide tube
  16. Parts stopper unit
  17. Coolant unit （6.9MPa/2.5MPa/0.7MPa ）
  18. Coolant unit signal cable 46 contacts Ver.
  19. Coolant unit power cable
  20. Coolant valve
  21. Coolant piping
  22. Expanded I/O module unit
  23. Terminal base
  24. Reducing valve
  25. Main spindle inner tube
  26. Steady rest for feed rod
  27. Automatic bar feeder interface
  28. Steady rest unit cover
  29. Safety cover
  30. LAN ／ RS232C interface
  31. Transformer
  32. Transformer CE marking version 20kVA
  33. CE/UKCA marking version
