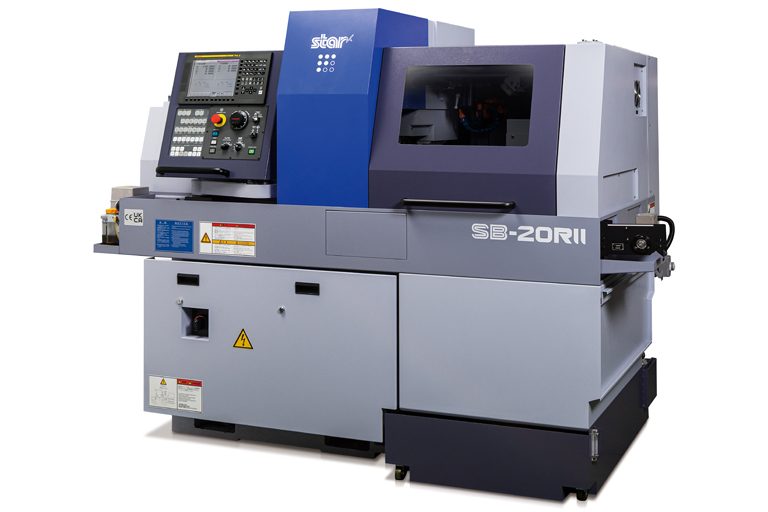

SB-20RII CNC Swiss-type Automatic Lathe

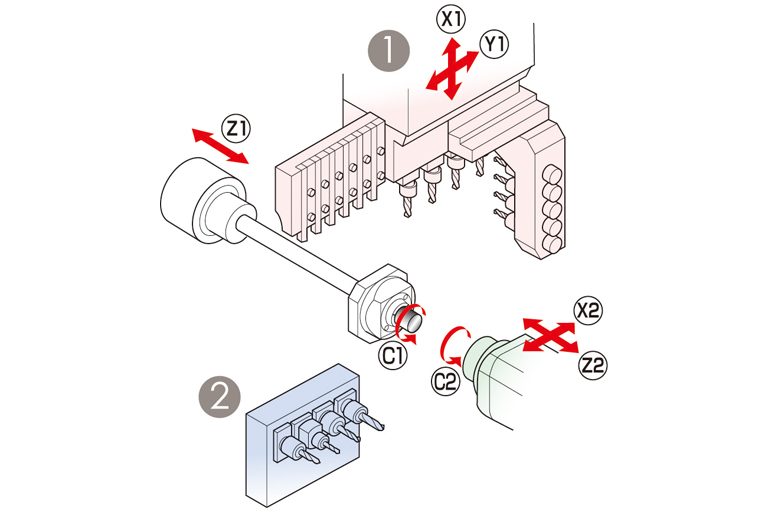

The SB-20RII delivers enhanced performance, versatility, and ergonomics with added tool stations, higher spindle speeds, advanced controls, and improved accuracy. With 7 axes, the main spindle supports 6 turning tools, 2 fixed spindles for cross-working, and 3 modular power-driven stations for various attachments. The sub spindle offers 4 standard stations, expanding to 6. The SB-20RII can operate in both guide bush and non-guide bush modes for greater flexibility.

Download PDF Request Info

  • Max. Machining Diameter

    ø20mm (25/32in) OP: ø25.4mm (1in)

  • Max. Headstock Stroke

    G. B. TYPE
    205mm (8in) MR25 : 196mm (7-15/16in)

    N. G. B. TYPE
    Bar diameter × 2.5 (max. 50mm) (Max. 1-31/32in)

  • Number of Turning Tools

    6 tools (ø12mm) / 5 tools (ø16mm)

  • Sleeve Holder

    NUMBER OF TOOLS 4-tool type
    ø22mm X 2 Tools/ ø32mm X 2 Tools

    NUMBER OF TOOLS 4-tool type
    ø22mm X 5 tools

    MAX. DRILLING CAPABILITY
    ø12mm (1/2in)

    MAX. TAPPING CAPABILITY
    M10 × P1.5

  • Power-Driven Attachment

    NUMBER OF TOOLS
    Cross Drilling: 2 spindle (ER 16); cartridge type: 3 pos (ER16)

    MAX. DRILLING CAPABILITY
    ø7mm

    MAX. TAPPING CAPABILITY
    M6×P1.0

    SPINDLE SPEED
    max.8,000min-1

    DRIVE MOTOR
    1.2kW

  • Rapid Feed Rate

    35m/min (X1m Y1, Z1, X2, Z2)

  • Main Spindle Indexing Angle

    C-axis Control

  • Main Spindle Speed

    Max. 10,000min-1 (OP: Max. 8,000min-1)

  • Main Spindle Motor

    2.2kW (cont)/3.7kW (10min/25%ED)

  • Coolant Tank Capability

    180ℓ

  • Dimensions (W × D × H)

    2,070 × 1,095× 1,775mm
    Center Height - 1,060mm

  • Weight

    Approx. 2,000kg

  • Power Consumption

    4.2KVA

  • Max. Chucking Diameter

    ø20mm (25/32in) OP: ø25.4mm (1in)

  • Max. Length For Front Ejection

    105mm (4-9/64in)

  • Max. Parts Projection Length

    30mm (1-3/16in)

  • 4-Spindle Backworking Unit

    NUMBER OF TOOLS
    4 tools (Stationary tool/Power driven tool)

    MAX. DRILLING CAPABILITY
    Stationary Tool: ø8mm (5/16in) OP: 10mm (25/64in)
    Power-Driven Att: ø6mm (15/64in)

    MAX. TAPPING CAPABILITY
    Stationary Tool: M6 × P1.0 (OP: M8 x P1.25)
    Power-Driven Att: M5 x P0.8

  • Sub Spindle Indexing Angle

    C-axis control

  • Sub Spindle Speed

    Max. 10,000min-1 (OP: Max. 8,000min-1)

  • Sub Spindle Speed Control

    AC Servo Drive

  • Sub Spindle Motor

    1.5kW (cont) / 2.2kW (15min/60%ED)

  1. CNC unit Fanuc 0i-TF Plus
  2. 10.4 inch color touch panel display
  3. Pneumatic unit
  4. Water separator
  5. Coolant level detector
  6. Automatic centralized lubrication unit
  7. Door interlock system
  8. Broken cutoff tool detector
  9. C's contour control (main/sub)
  10. Spindle clamp unit (main/sub)
  11. Drive unit for revolving guide bush
  12. Air purge unit for revolving guide bush
  13. Main/Sub collet sleeve
  14. Tool holder
  15. Sleeve holder
  16. Cartridge-type 5-spindle cross drilling unit
  17. Sub spindle air purge unit
  18. Sub spindle air blow unit
  19. Back 4-spindle unit
  20. Work light
  1. Beacon
  2. Beacon Interface
  3. Oil mist filter
  4. Sub spindle torque up version
  5. Drive unit for power driven tool type B
  6. Oil air specification of X2 axis
  7. Main spindle inner tube
  8. Automatic bar feeder interface
  9. Steady Rest for Feed Rod
  10. Pneumatic unit for rotary magic guide bushes
  11. Non-Guide Bush Version
  12. Parts ejection detector
  13. Parts ejector with Spring
  14. Parts ejector with Air Cylinder
  15. Parts ejector with Guide Tube
  16. Parts stopper unit
  17. Parts conveyor
  18. Parts separator type A
  19. Coolant flow detector
  20. Coolant Unit (0.7MPa/2.5MPa/6.9MPa)
  21. Coolant unit signal valve
  22. Coolant unit power cable
  23. Coolant valve (2.5MPa/6.9MPa)
  24. Coolant unit piping
  25. Tool holder for coolant thru
  26. Expanded I/O module unit
  27. Terminal base
  28. Chip conveyor hinge type
  29. Chip conveyor hinge type long-length
  30. Mist collector mounting adapter
