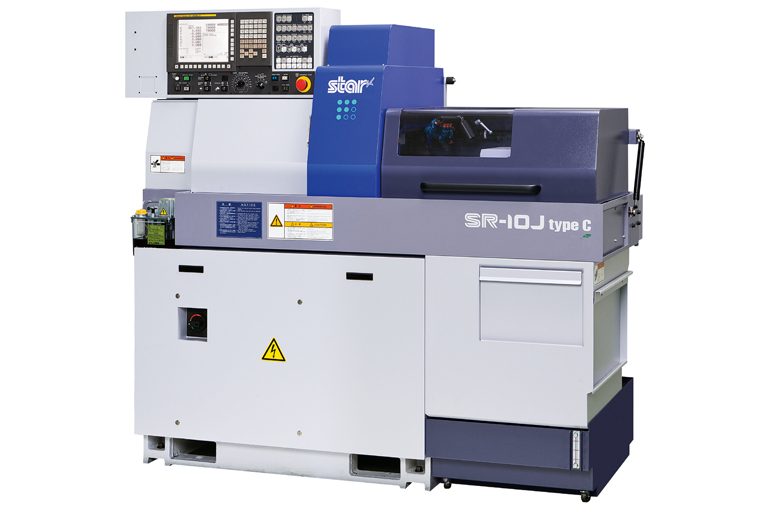

SR-10J Type C CNC Swiss-type Automatic Lathe

High performance machine with enhanced capability and operability for machining small diameter parts

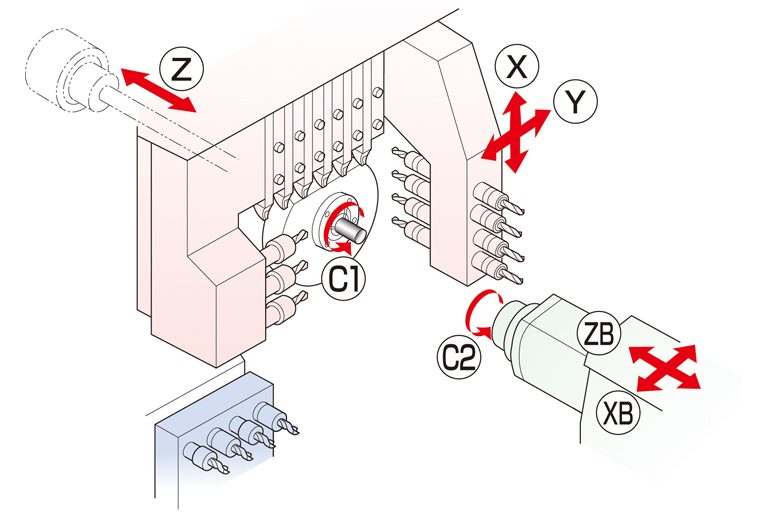

  • C-axis control (with clamp) for both the main and sub spindle enhances secondary machining
  • High (15,000 RPM) spindle speed
  • Dynamic, efficient machine design for high accuracy machining for small parts
  • 3-spindle drilling unit for secondary machining
  • Standard manual pulse generator facilitates installation

  • Max. Machining Diameter

    ø10mm(25/64in)

  • Max. Headstock Stroke

    STATIONARY GB
    135mm (5-5/16in)

    REVOLVING GB
    105mm (4-9/64in)

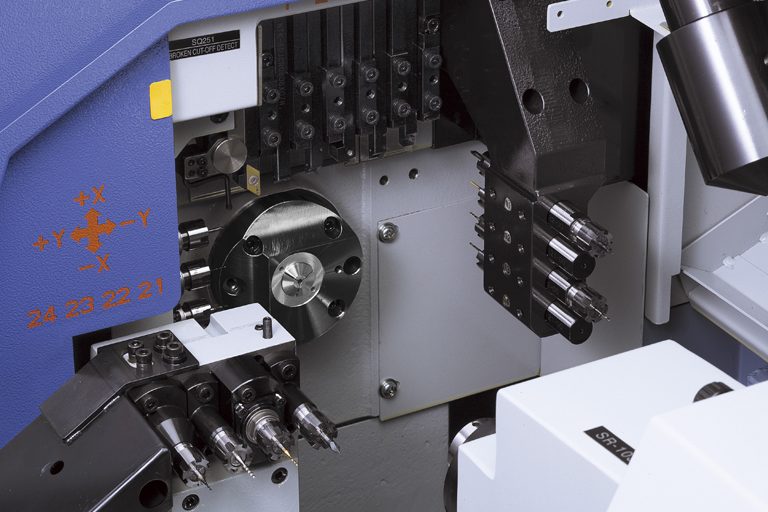

  • Tool

    NUMBER OF TOOLS
    6 tools (8mm)

  • 4-Spindle Sleeve Holder

    NUMBER OF TOOLS
    Front 4 tools
    Rear 4 tools

    MAX. DRILLING CAPABILITY
    ø6mm (15/64in)

    MAX. TAPPING CAPABILITY
    M5 x PO.8

  • Power-Driven Att.

    NUMBER OF TOOLS
    3 tools

  • Max. Drilling Capacity

    ø4mm (5/32in)

  • Max. Tapping Capacity

    M3XP0.5

  • Main Spindle Min. Indexing Degree

    C-axis control

  • Main Spindle Speed

    Max. 15,000min-1

  • Rapid Feed Rate

    35m/min (X, Y, Z, XB, ZB)

  • Main Spindle Motor

    2.2kw(continuous)/3.7kw(15min.)

  • Power-Driven Att. Spindle Speed

    Max. 10,000min-1

  • Power-Driven Att. Drive Motor

    0.5kw

  • Coolant Tank Capacity

    85ℓ

  • Dimensions (Width x Depth x Height)

    1,865 x 775 x 1,695mm

  • Center Height

    1,050mm

  • Weight

    1,400kg

  • Power Consumption

    3.5KVA

  • Max. Chucking Diameter

    ø10mm (25/64in)

  • Max. Length for Front Ejection

    70mm (2-3/4in)

  • Max. Parts Projection Length

    20mm (25/32in)

  • Back 4-Spindle Unit

    NUMBER OF TOOLS
    Stationary Tool
    4 tools
    Power-Driven Tool
    Max 2 tools

    MAX. DRILLING CAPABILITY
    Stationary Tool
    ø4mm (5/32in)
    Power-Driven Tool
    ø4mm (5/32in)

    MAX. TAPPING CAPABILITY
    Stationary Tool
    M3 x PO.5
    Power-Driven Tool
    M3 x PO.5

  • Sub Spindle Min. Indexing Angle

    C-axis control

  • Sub Spindle Speed

    Max. 10,000min-1

  • Sub Spindle Motor

    0.55kw (continuous) / 1.1kw (15min.)

  1. CNC unit (Fanuc 32i-B)
  2. Cabinet & Operation panel
  3. 10.4 inch color LCD display
  4. Manual pulse generator
  5. Pneumatic unit
  6. Stand-alone type coolant tank
  7. Coolant level detector (lower limit)
  8. Automatic centralized lubrication unit (with level detector)
  9. Door interlock system
  10. Main collet (select from tooling system)
  11. Cs contouring control (main/sub spindle)
  12. Spindle clamp unit (main/sub)
  13. 6-station tool holder (8mm)
  14. 4-Spindle sleeve holder
  15. Drive system for power-driven attachment
  16. Back working attachment
  17. Drive unit for power-driven attachment B
  18. Sub collet (select from tooling system)
  19. Sub spindle air purge unit
  20. Sub spindle air blow unit
  21. Parts ejection detector
  22. Broken cutoff tool detector
  23. Leveling bolt & leveling pad
  24. Work light
  25. Leakage breaker (Rated current sensitivity: 30mA)
  26. Operation tool kit
  1. Main spindle inner tube 6mm
  2. Stationary guide bush unit
  3. Rotary guide bush drive unit
  4. Rotary magic guide bush unit
  5. Air purge unit
  6. Coolant flow detector
  7. Automatic Barfeeder interface
  8. Water removal unit
  9. Tool for maintenance
  10. 4-Spindle unit for back working (for stationary tools at back)
  11. Parts conveyor unit A
  12. Transformer CE marking specifications
  13. Parts conveyor
  14. Compliant with the RS-232C interface
  15. Warning light
